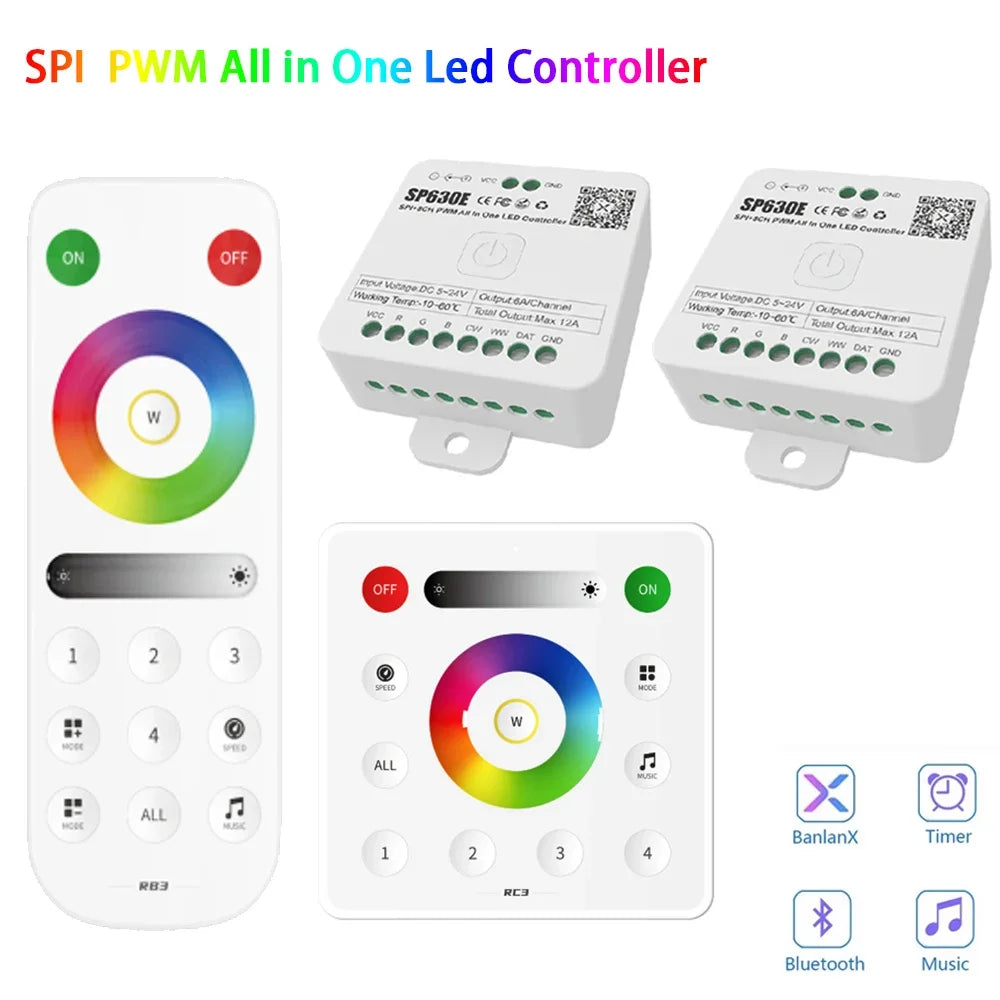

SP630E Bluetooth LED Controller - DC5V-24V WS2811 SPI RGB RGBW PWM Controller with 2.4G 4-Zone Touch Remote

Professional Bluetooth LED Controller with Multi-Zone Control

Take complete command of your LED lighting with the SP630E Bluetooth LED Controller, a versatile professional-grade controller that supports both addressable SPI pixels (WS2811, WS2812B) and traditional PWM LED strips (RGB, RGBW). Featuring Bluetooth connectivity, a premium 2.4G 4-zone touch remote, and compatibility with DC5V-24V systems, this controller delivers seamless control for complex multi-zone lighting installations, smart home projects, and professional lighting designs.

Key Features

• Dual Protocol Support: Controls both SPI addressable pixels (WS2811, WS2812B, SK6812) and PWM LED strips (3CH RGB, 4CH RGBW)
• Bluetooth Connectivity: Wireless control via smartphone app for iOS and Android with intuitive color picker and effect selection
• 2.4G 4-Zone Touch Remote: Premium RF remote with touch-sensitive controls for managing up to 4 independent lighting zones simultaneously
• Wide Voltage Range: Supports DC5V to DC24V LED systems for maximum compatibility with various LED strip types
• Multi-Zone Control: Manage up to 4 separate lighting zones independently—perfect for complex installations with multiple rooms or areas
• Universal LED Compatibility: Works with WS2811, WS2812B, WS2813, SK6812, 5050 RGB, 5050 RGBW, and other common LED types
• Music Sync Mode: Built-in microphone responds to music and ambient sound for reactive lighting displays
• Multiple Control Methods: Bluetooth app, 2.4G RF remote, or manual button control for maximum flexibility
• Memory Function: Saves your last settings and automatically restores them on power-up

Perfect For

• Multi-room smart home lighting installations with independent zone control
• Retail stores and commercial spaces requiring separate area lighting management
• Restaurants, bars, and hospitality venues with multiple ambiance zones
• Home theater and entertainment rooms with accent and backlighting zones
• Architectural lighting with cove, under-cabinet, and display lighting
• Gaming setups with synchronized RGB peripheral and ambient lighting
• Professional installations requiring reliable multi-zone control
• DIY smart lighting projects with complex control requirements

Technical Specifications

• Model: SP630E
• Connectivity: Bluetooth 4.0 + 2.4GHz RF wireless
• Input Voltage: DC 5V - 24V (auto-detect)
• SPI Protocol Support: WS2811, WS2812B, WS2813, SK6812, UCS1903, TM1804, TM1809, TM1812, and more
• PWM Output: 3-channel (RGB) or 4-channel (RGBW)
• Maximum Pixels: Up to 2048 addressable pixels (SPI mode)
• Output Current: 6A per channel (PWM mode)
• Control Zones: 4 independent zones via RF remote
• Control Methods: Bluetooth app, 2.4G RF remote, manual buttons
• Remote Type: 2.4GHz RF touch-sensitive remote (included)
• Remote Range: Up to 30 meters (98 feet) line-of-sight
• Music Sync: Built-in microphone for sound-reactive effects
• Dimensions: Compact design for easy installation
• Weight: 200g (controller and remote)
• Operating Temperature: -20°C to 60°C
• App Compatibility: iOS 9.0+ and Android 4.4+

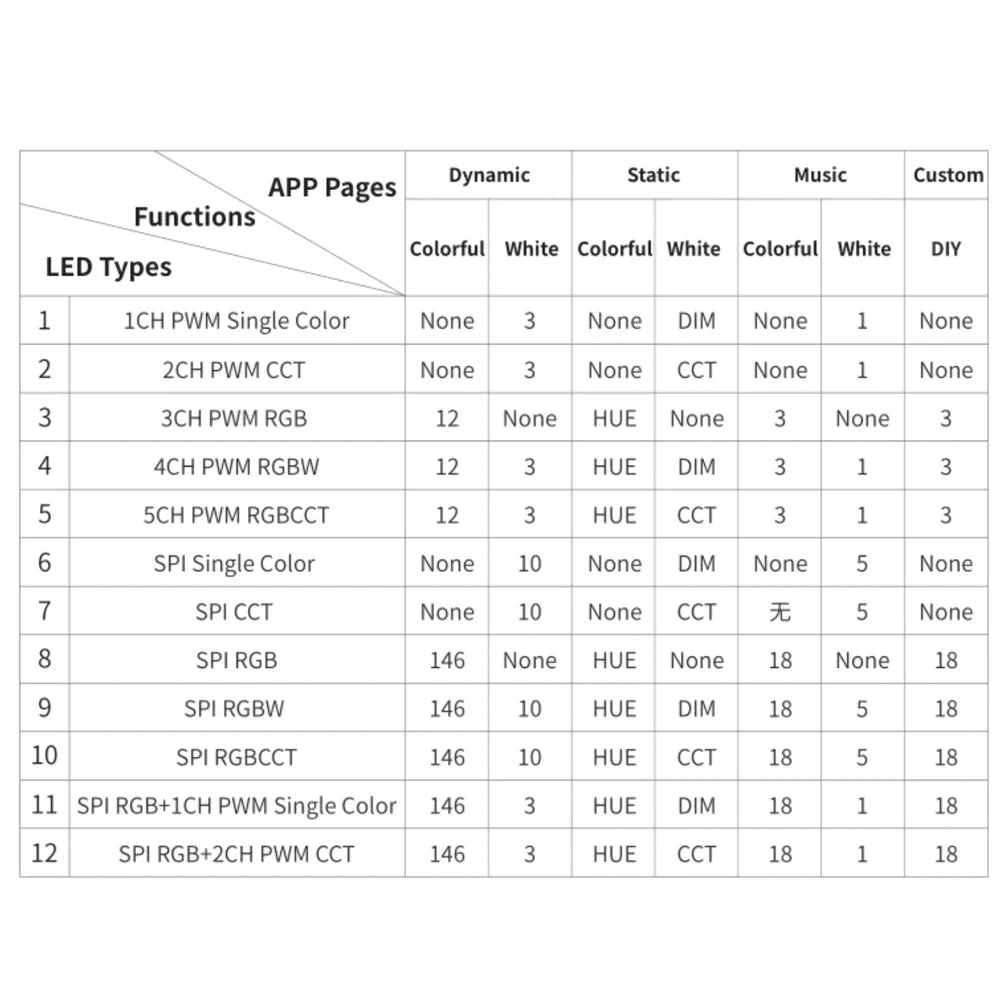

Supported LED Types

SPI/Addressable Mode: WS2811, WS2812B, WS2813, SK6812, SK6812RGBW, UCS1903, TM1804, TM1809, TM1812, INK1003, and other addressable IC chips

PWM Mode: 3-channel RGB LED strips (5050, 3528, 2835) and 4-channel RGBW LED strips

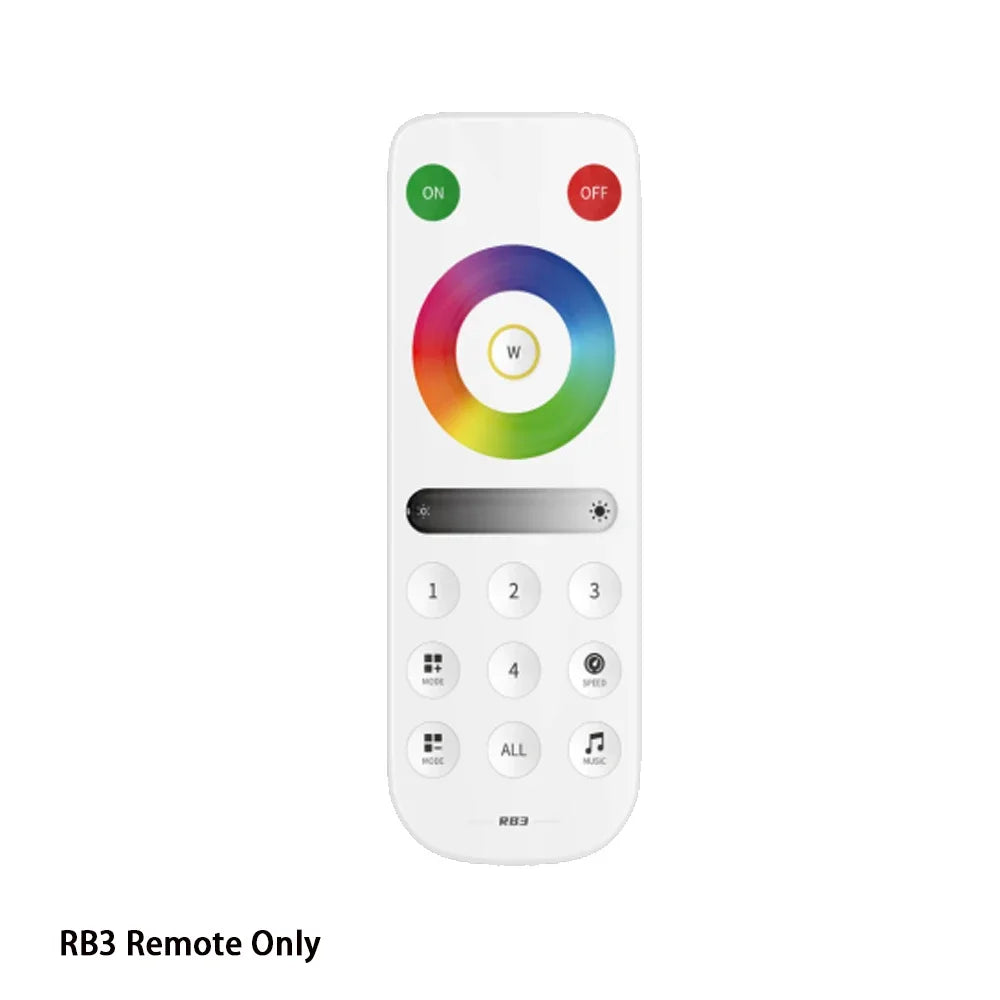

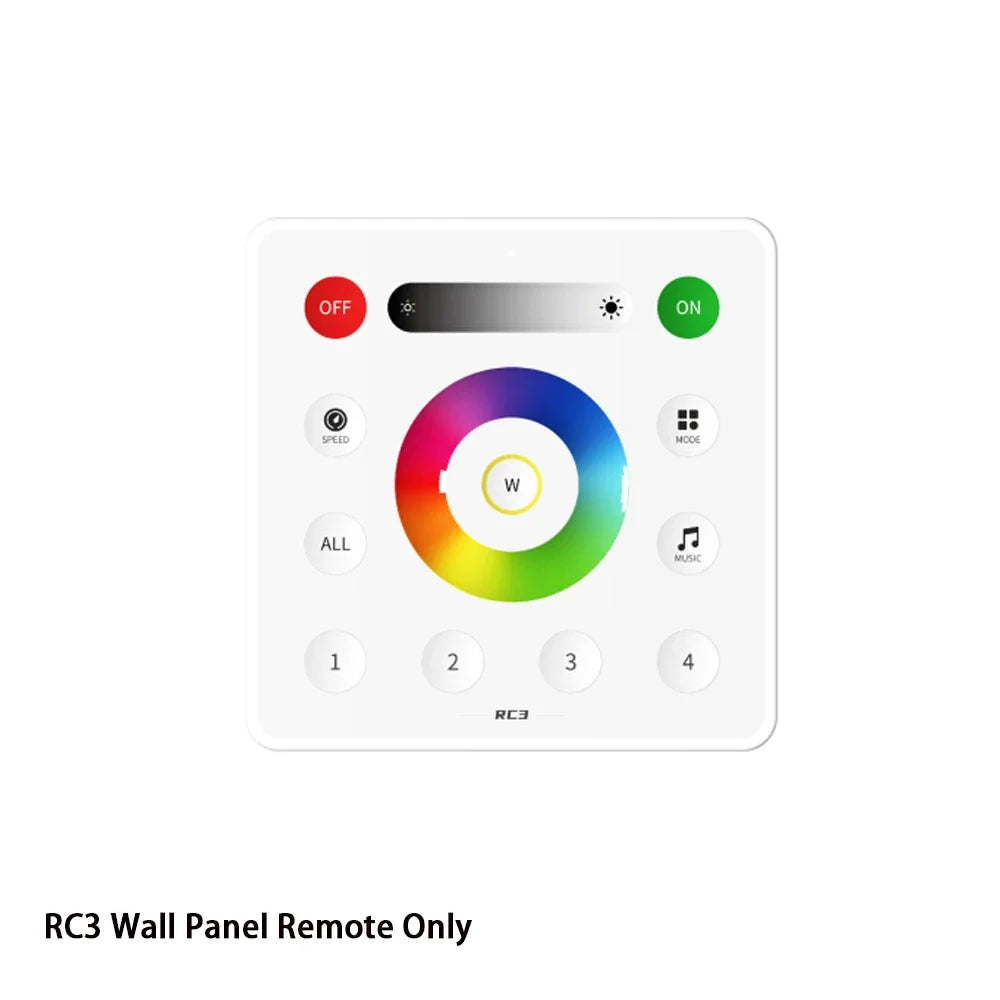

4-Zone Touch Remote Features

• Independent Zone Control: Manage 4 separate lighting zones with individual on/off, color, brightness, and effect settings
• Touch-Sensitive Interface: Premium capacitive touch controls for smooth, responsive operation
• 2.4GHz RF Technology: Reliable wireless connection with no line-of-sight requirement—works through walls and obstacles
• Long Battery Life: Energy-efficient design with replaceable battery
• Instant Pairing: Pre-paired with controller for immediate use out of the box
• Compact Design: Pocket-sized remote for convenient portability

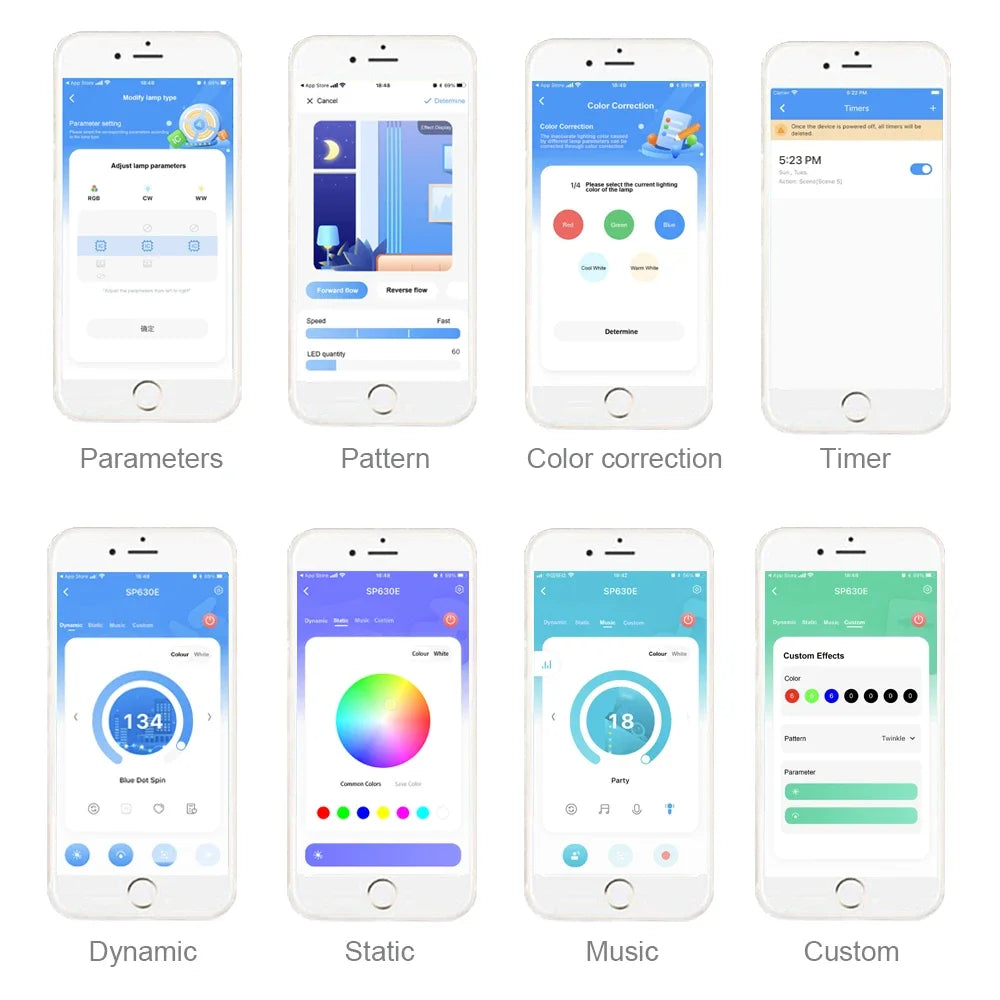

Bluetooth App Features

• Color Picker: Select from 16 million colors with intuitive color wheel interface
• Scene Presets: Dozens of pre-programmed effects including fade, jump, strobe, rainbow, and gradient modes
• Music Sync Modes: Multiple reactive patterns that respond to bass, rhythm, and ambient sound
• DIY Mode: Create custom color sequences and animation patterns
• Brightness Control: Smooth dimming from 1-100% with precise control
• Speed Adjustment: Control animation speed for dynamic or subtle effects
• Timer & Scheduling: Automate your lighting with daily schedules and custom timers
• Zone Management: Configure and control all 4 zones from a single app interface

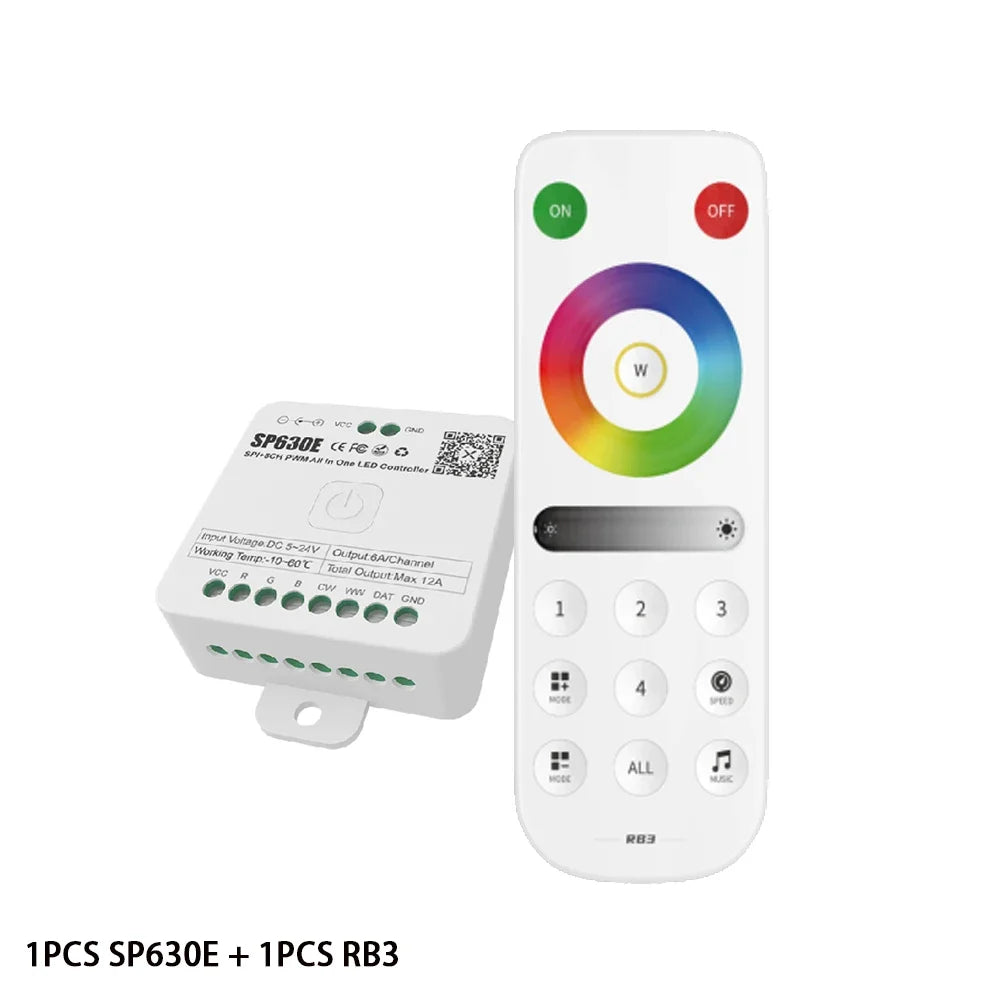

What's Included

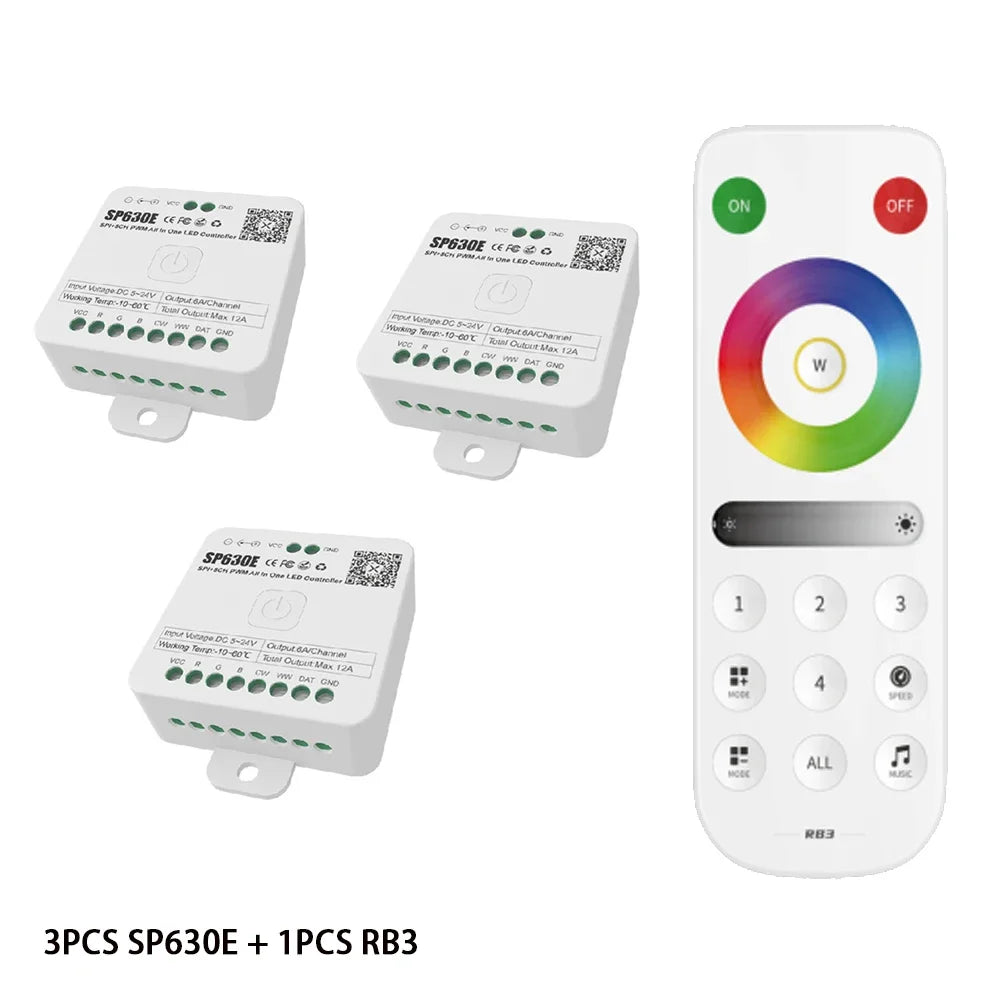

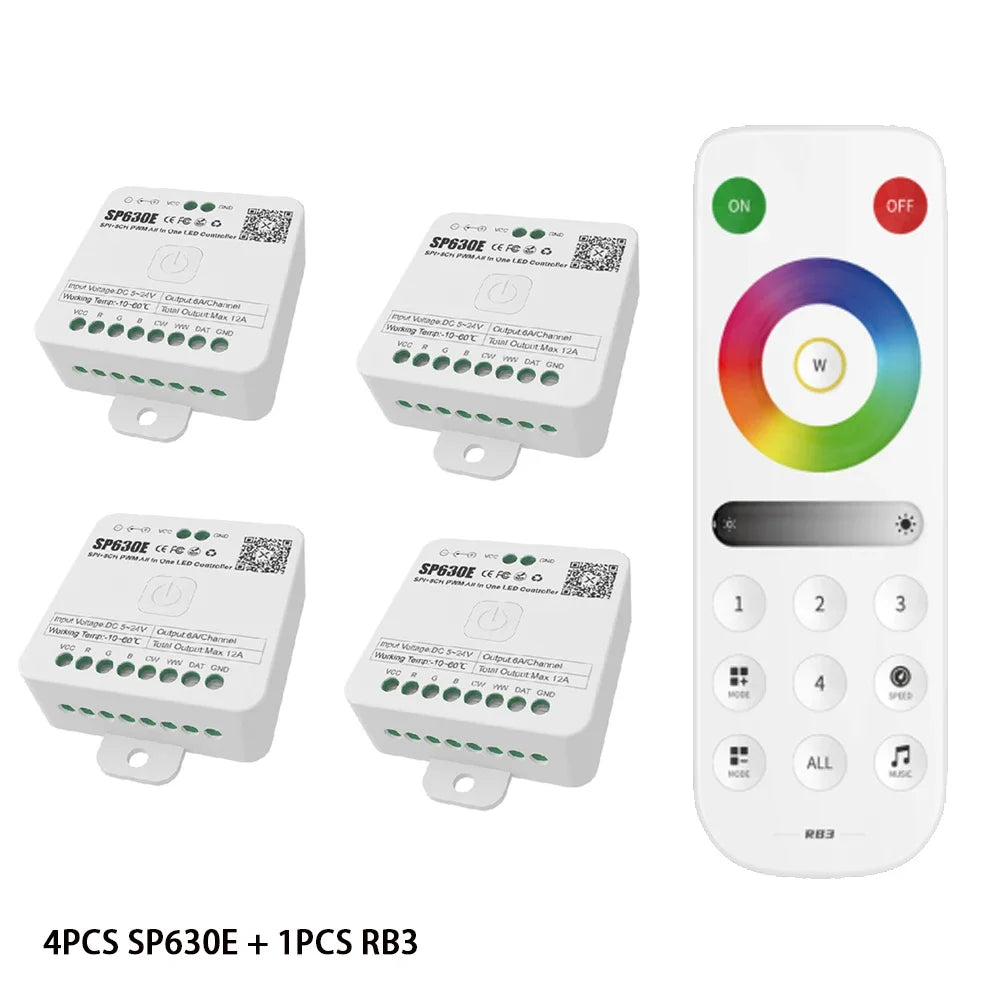

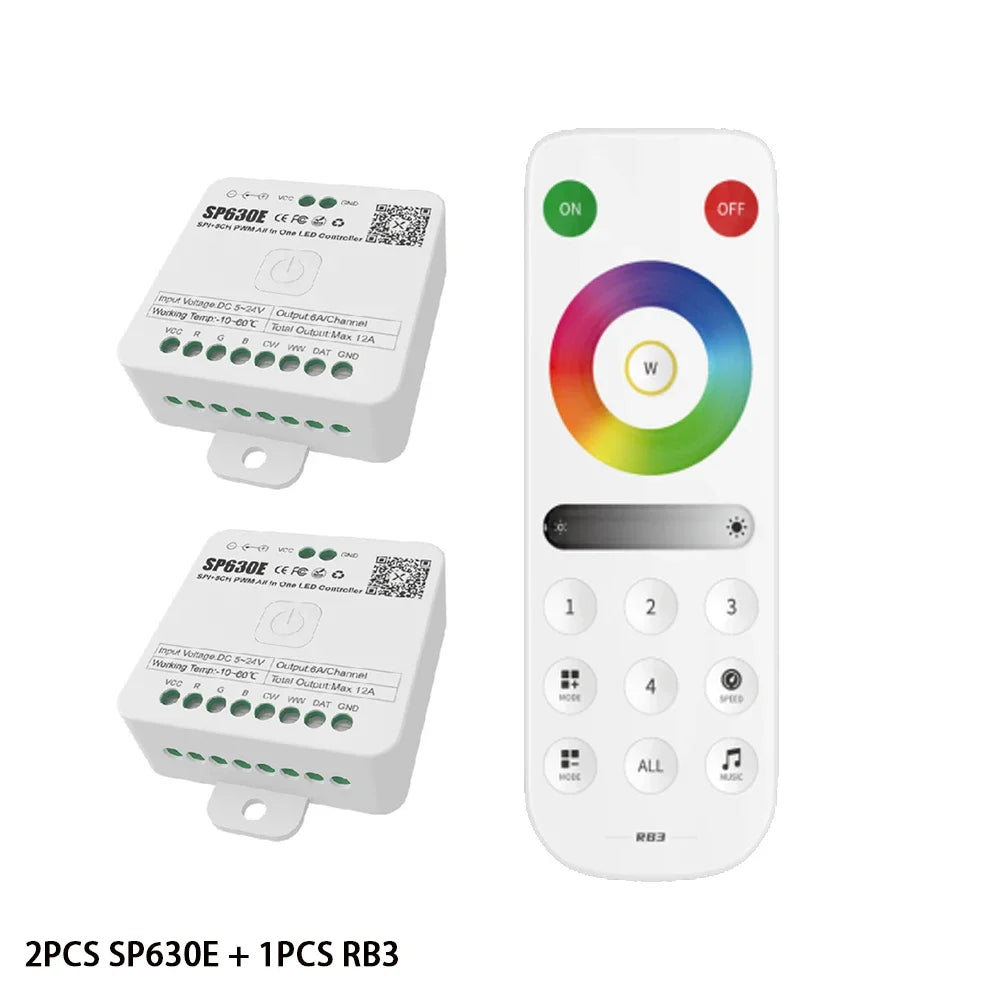

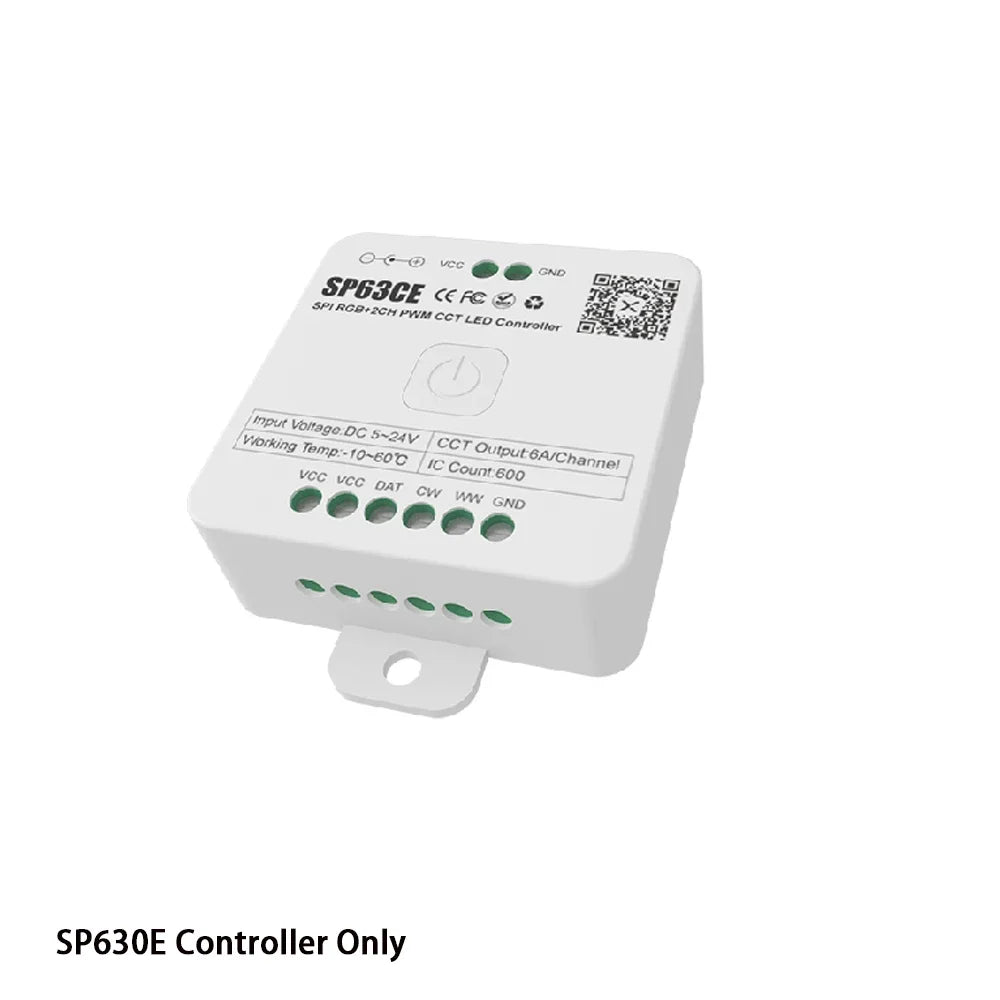

• SP630E Bluetooth LED Controller
• 2.4G 4-Zone RF Touch Remote Control
• Remote battery
• User manual with wiring diagrams and setup instructions

Note: Power supply and LED strips sold separately. Ensure your power supply matches your LED strip voltage requirements (5V, 12V, or 24V) and has adequate current capacity.

Easy Setup & Installation

Step 1: Connect your LED strips to the appropriate output terminals (SPI data line for addressable strips, or RGB/RGBW channels for PWM strips)

Step 2: Connect the power supply to the controller input (5V-24V DC)

Step 3: Download the companion Bluetooth app and pair with the controller

Step 4: Use the pre-paired RF remote or app to control your lighting—setup complete!

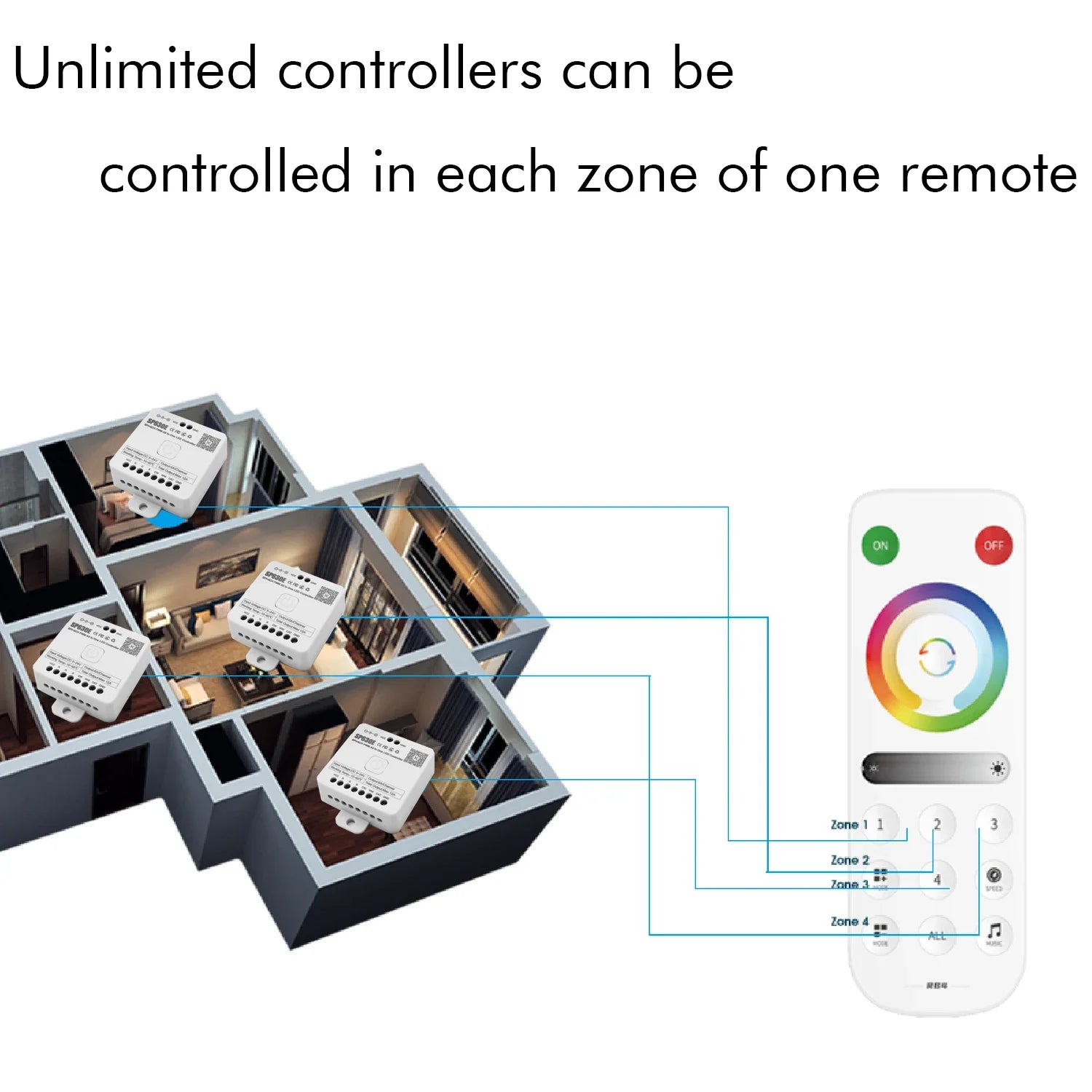

Multi-Zone Applications

The 4-zone capability makes the SP630E ideal for sophisticated installations:

• Living Room: Zone 1 for TV backlighting, Zone 2 for cove lighting, Zone 3 for under-cabinet, Zone 4 for accent shelving
• Restaurant: Zone 1 for dining area, Zone 2 for bar, Zone 3 for entrance, Zone 4 for outdoor patio
• Retail Store: Zone 1 for window display, Zone 2 for product shelves, Zone 3 for checkout area, Zone 4 for back wall
• Home Theater: Zone 1 for screen backlighting, Zone 2 for ceiling cove, Zone 3 for floor lighting, Zone 4 for seating accent

Why Choose the SP630E?

Unlike basic single-zone controllers, the SP630E offers professional-grade multi-zone control with both Bluetooth app and RF remote operation. The dual protocol support (SPI and PWM) means one controller can handle virtually any LED type, eliminating the need for multiple controllers in complex installations. The 2.4G RF remote provides reliable control without line-of-sight limitations, while the Bluetooth app offers advanced programming and customization.

The wide DC5V-24V voltage range ensures compatibility with the most common LED strip voltages, and the robust 6A per channel output handles high-power installations with ease. Whether you're a professional installer managing commercial projects or a DIY enthusiast building a sophisticated smart home lighting system, the SP630E delivers the features, reliability, and control you need.

Wiring & Configuration

The controller features clearly labeled terminals for easy wiring. For SPI addressable strips, connect the data line to the SPI output terminal. For PWM RGB/RGBW strips, connect each color channel to the corresponding R, G, B, or W terminal. The controller auto-detects voltage (5V-24V) and adjusts accordingly. Detailed wiring diagrams are included in the user manual for various LED configurations.

Control your lighting with precision, flexibility, and professional-grade performance.

Whether you're managing a multi-room smart home, designing commercial lighting installations, or creating an immersive entertainment environment, the SP630E Bluetooth LED Controller with 2.4G 4-Zone Touch Remote delivers the versatility, reliability, and advanced control features that transform complex lighting projects into seamless, beautiful experiences.
